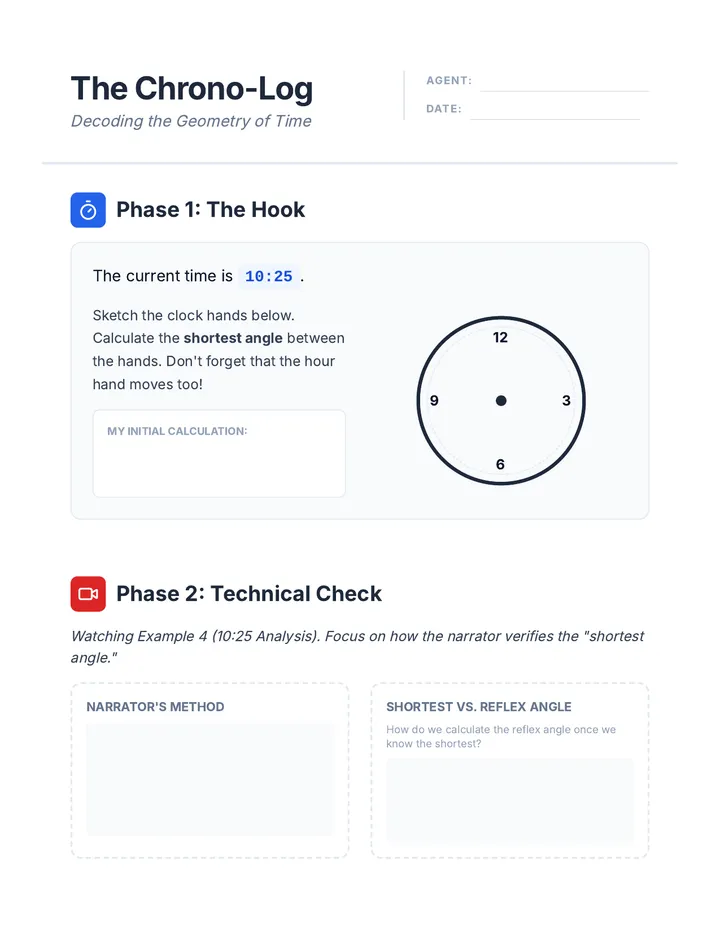

Chrono Log Worksheet The Chrono-Log
Decoding the Geometry of Time
Agent:
Date:
Phase 1: The Hook
The current time is 10:25.
Sketch the clock hands below. Calculate the shortest angle between the hands. Don't forget that the hour hand moves too!
My Initial Calculation:
12 3 6 9
Phase 2: Technical Check
Watching Example 4 (10:25 Analysis). Focus on how the narrator verifies the "shortest angle."
Narrator's Method
Shortest vs. Reflex Angle
How do we calculate the reflex angle once we know the shortest?
Phase 3: The Chrono-Project
Task A: Design a Challenge
Create two distinct clock problems. You must calculate the answer yourself first to verify!
Problem 1: Result is an Integer
Time:
Problem 2: Result ends in .5
Time:
Task B: Peer Review
Swap with a partner. Solve their challenges below.
Partner Time 1:
Answer: ___________°
Partner Time 2:
Answer: ___________°
Chrono Calculus Slides Chrono Calculus
The Geometry of Analog Time
The Hook
The Time is:
10:25
Calculate the shortest angle between the hands.
"Wait... where exactly is the hour hand? Is it exactly on the 10?"
Technical Breakdown: 10:25
Video Segment: 9:02 - End
Embedded media
Focus on the Shortest Angle Check at 11:52.
The Blueprint
1
The Sector Rule
Every hour mark is exactly 30°.
360° / 12 hours = 30° per hour
2
The Movement Ratio
The hour hand moves 0.5° per minute.
(Minutes / 60) * 30°
3
Shortest vs. Reflex
If your calculated angle is > 180°, you've found the reflex angle!
Shortest Angle = 360° - Reflex Angle
Chrono-Project
Design 1 time that results in an Integer Angle.
Design 1 time that results in a Decimal Ending in .5.
Swap with a partner and solve their puzzle!
The Debrief
Why do some times result in decimals while others don't?
How would the math change if the clock only had 10 numbers?
Is there a universal formula that works for any time H:M?

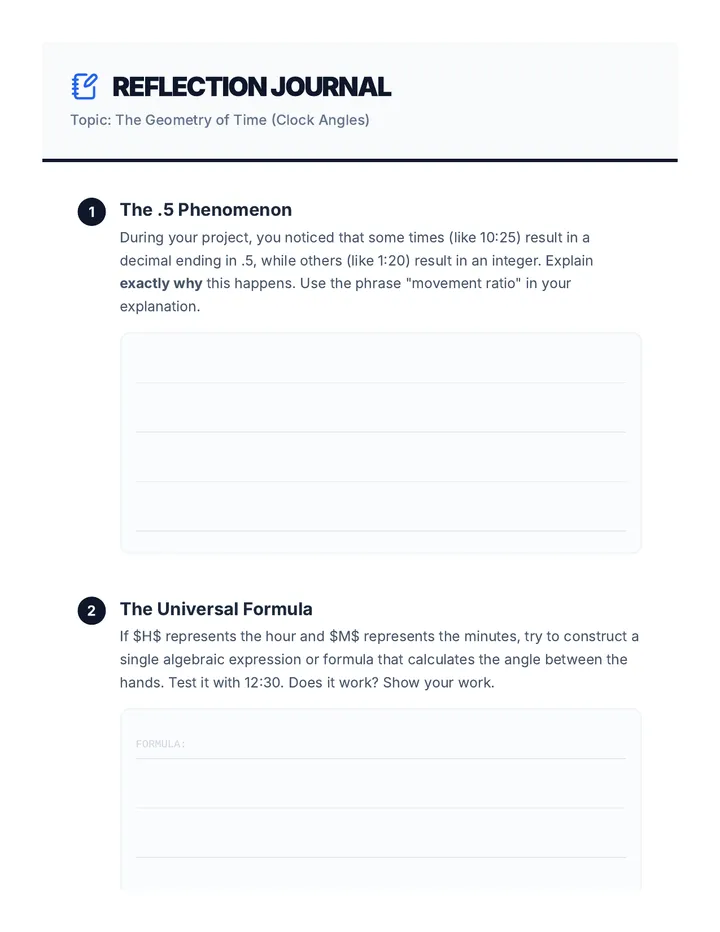

Chrono Reflection Prompts Reflection Journal
Topic: The Geometry of Time (Clock Angles)
1
The .5 Phenomenon
During your project, you noticed that some times (like 10:25) result in a decimal ending in .5, while others (like 1:20) result in an integer. Explain exactly why this happens. Use the phrase "movement ratio" in your explanation.
2
The Universal Formula
If $H$ represents the hour and $M$ represents the minutes, try to construct a single algebraic expression or formula that calculates the angle between the hands. Test it with 12:30. Does it work? Show your work.
FORMULA:
3
The Metric Clock Challenge
Imagine an alien planet uses a "Metric Clock" with 10 hours in a day, and 100 minutes in each hour. How many degrees would be in a single "hour sector"? How many degrees would the hour hand move for every alien minute passed?

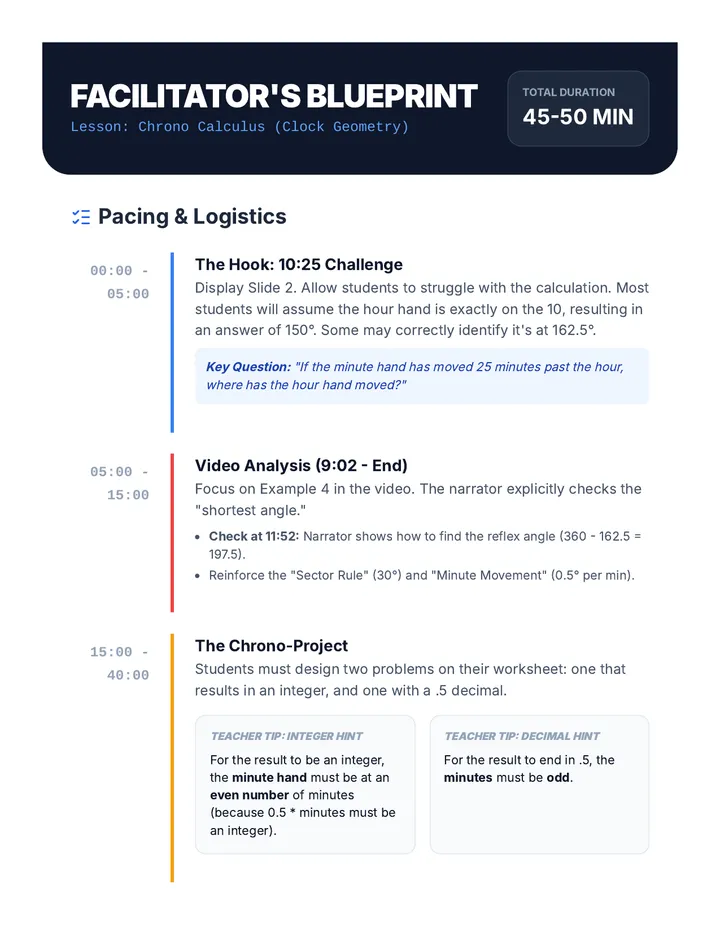

Chrono Calculus Teacher Guide Facilitator's Blueprint
Lesson: Chrono Calculus (Clock Geometry)
Total Duration
45-50 MIN
Pacing & Logistics
00:00 - 05:00
The Hook: 10:25 Challenge
Display Slide 2. Allow students to struggle with the calculation. Most students will assume the hour hand is exactly on the 10, resulting in an answer of 150°. Some may correctly identify it's at 162.5°.
Key Question: "If the minute hand has moved 25 minutes past the hour, where has the hour hand moved?"
05:00 - 15:00
Video Analysis (9:02 - End)
Focus on Example 4 in the video. The narrator explicitly checks the "shortest angle."
Check at 11:52: Narrator shows how to find the reflex angle (360 - 162.5 = 197.5).Reinforce the "Sector Rule" (30°) and "Minute Movement" (0.5° per min).
15:00 - 40:00
The Chrono-Project
Students must design two problems on their worksheet: one that results in an integer, and one with a .5 decimal.
Teacher Tip: Integer Hint
For the result to be an integer, the minute hand must be at an even number of minutes (because 0.5 * minutes must be an integer).
Teacher Tip: Decimal Hint
For the result to end in .5, the minutes must be odd .
40:00 - 50:00
The Debrief & Generalization
Discuss the "Odd Minutes = .5" pattern. Introduce the algebraic formula if students haven't discovered it.
Angle = | 30H - 5.5M |
Cipher Key (Answers)
10:25
162.5°
Reflex of 10:25
197.5°
12:30
165°
Reflection Answer: The Metric Clock
Hour Sector: 360° / 10 = 36° per alien hour.Minute Movement: 36° / 100 minutes = 0.36° per alien minute.
